VMware View Licensing for Dummies

Questions about VMware View licensing often appear in my radar, especially from customers under ELA. Customers under VMware ELA may deploy as many VMware products as they wish based on agreement and need to report usage back to VMware.

This blog post is aimed to help you understand how to report VMware View usage under an ELA agreement. This is not in any way an official response from VMware around licensing, and if you have any questions you should contact your VMware sales rep.

  • How should my enterprise be reporting VMware View usage?
  • Should I use the numbers virtual desktop in my vSphere Clusters?
  • Is VMware View licensed per median concurrency or maximum concurrency?

Before I go ahead it is important to clarify that a ELA defines a different license type for VMware View than the typical EULA. A ELA may be different for each customer, however, typically VMware View measures licensing as number of concurrent powered-on desktops.

A concurrent connection is defined as a powered on virtual desktop receiving a remote connection from a device or running locally on a device. The VMware View 5.0 FAQ:
Pricing, Licensing and Support help to define the context.

http://www.vmware.com/files/pdf/view/VMware-View-FAQ-Pricing-Licensing-and-Support.pdf



Going back to VMware View…

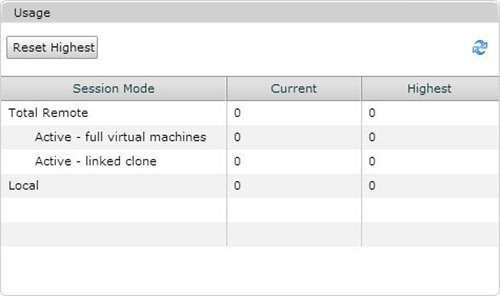

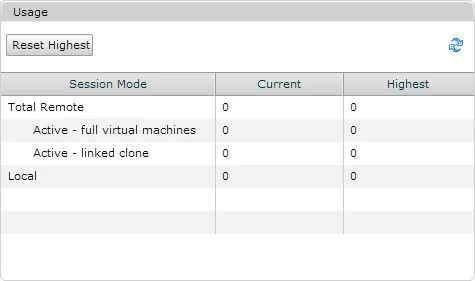

view_licence_usage



On the VMware View Admin dashboard, under View Configuration, Product Licensing and Usage administrator will find the system usage reporting (above image) demonstrating the highest number of simultaneous active connections to VMware View desktops seen at any one time.

This aligns with what the standard licensing for VMware View is. However, the term "Powered On Virtual Desktop" machine can be a little bit confusing, especially in a ELA context.

When an enterprise buy vSphere Desktop licenses, it really is Powered on VMs (since there is no way for VMware to measure concurrency – VMware doesn’t have a broker here to monitor connection usage.

When you buy VMware View, the definition of "Powered On Virtual Desktop" then morphs into a powered on VMs that you have active connections to.  So in practice it doesn’t matter if a VMware View customer has 1,000,000 powered on VMs.  If they only ever have 10 simultaneous user connections to those desktops VMs, then they would be in compliance if they bought 10 seats of VMware View. If however, they bought vSphere Desktop Licenses and had 1,000,000 powered on VMs, they’d need to pay for a million desktop seats.

Being a "logged in user" in VMware View doesn’t technically matter.  Since a user can be logged in but disconnected, it’s only the connected status that matters.  So if an enterprise have 100 desktops, and 100 real end users who all stayed logged in to those windows instances all the time (preserve their window placement, open apps, etc), if only 50 are ever connected to the desktops at a time (e.g. 2 shifts) then you’d only pay for 50 View seats.



More information can be found in the VMware Product Guide

http://www.vmware.com/files/pdf/vmware-product-guide.pdf



Thanks to Robert Baesman (@rbaesman) for providing clarification on the subject.



This article was first published by Andre Leibovici (@andreleibovici) at myvirtualcloud.net.

6 comments

Skip to comment form

    • Mike on 11/09/2012 at 9:08 am

    Thanks for the informative post. May I suggest a similar post with Microsoft licensing for the Windows 7/8 and the VDA licensing. I find it to be rather confusing and have not found a good summary online when I have previously searched.

    • forbsy on 11/09/2012 at 10:11 am

    This is still confusing:

    When you buy VMware View, the definition of “Powered On Virtual Desktop” then morphs into a powered on VMs that you have active connections to. So in practice it doesn’t matter if a VMware View customer has 1,000,000 powered on VMs. If they only ever have 10 simultaneous user connections to those desktops VMs, then they would be in compliance if they bought 10 seats of VMware View. If however, they bought vSphere Desktop Licenses and had 1,000,000 powered on VMs, they’d need to pay for a million desktop seats.

    In the first part you state that if a View customer has 1,000,000 powered on vm’s and only ever 10 simultaneous user connections to those desktops VMs, then they would be in compliance if they bought 10 seats of VMware View. The next sentence you state the exact same thing (1,000,000 powered on vm’s) yet now they have to pay for all 1,000,000 seats. I’m not sure I understand the difference.

    • Robert Baesman on 11/11/2012 at 9:10 pm

    Hi @forbsy ,

    The difference is that Andre is describing licensing schemes for two different things offerings:

    VMware View (either purchased as View Enterprise or View Premier)
    VMware vSphere Desktop

    “VMware View” is the whole enchilada with a Connection Server, etc. It’s a real “product”.
    VMware vSphere Desktop is just a SKU from VMware that lets you purchase vSphere itself at a per-desktop rater (rather than whatever scheme you’d use to purchase it for datacenter VMs); this allows folks who don’t want to use View but who want to run some sort of VDI solution on vSphere to get a fair deal on desktop based pricing.
    With a “VMware View” purchase, you get the concurrent connection based licensing. With “VMware vSphere Desktop” purchase, you get powered-on-VM pricing in the truest sense of the word.

    • Tim on 11/15/2012 at 11:25 pm

    VMware View is licensed per concurrent user. (Also available in VSPP model)
    VMware horizon application manager is licensed per named user. (Not available in VSPP model)

    Horizon suite will have both vmware view and horizon application manager included (amongst other features): how will this be licensed? Will it be available in VSPP model?

  1. @Tim
    Unfortunately I am not aware of licensing changes when Horizon App Manager and VMware View are bundled together or are sold as a single SKU. Hopefully VMware will be aligning the licensing model.

    Andre

    • babyg on 03/13/2014 at 6:55 am

    Can vSphere for Desktops lics be used to run XenApp workloads?
