VMware View 4.5 Application Assignment explained & tips

One of the new features in VMware View 4.5 is the integrated application assignment that simplifies the delivery of ThinApp applications to end-users using the View Administrator console. This is a pretty neat feature that allows deployment of virtualized applications to the desktop based on Desktop Pools or Individual Desktops. It is also possible to create pre-defined templates with a list of applications to be deployed; leaving to the administrator the task to add assignments.

ThinApp packages are hosted in a share on the network. The packages should be hosted in a server near the desktops, especially if they will be streamed to the desktop. The closer they are from the desktop; the more bandwidth available between desktops and file share; and the least the number of network hops between the servers, the better it is. These recommendations will provide better application loading time when streaming packages from network shares.

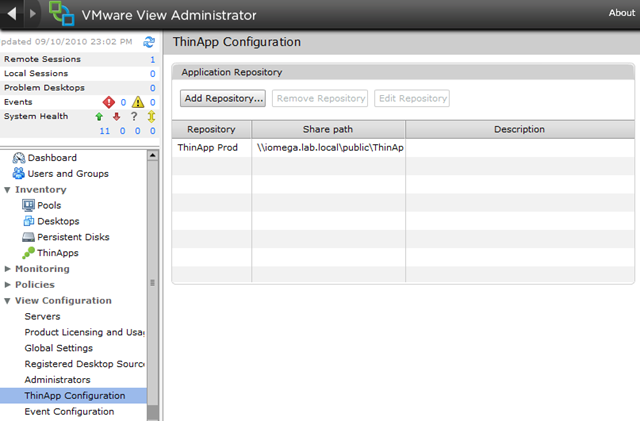

ThinApp packages in shares are organized into repositories and these repositories may have different locations. It is possible to have different repositories for organizational entities, such as Finance, HR or Call-Center.

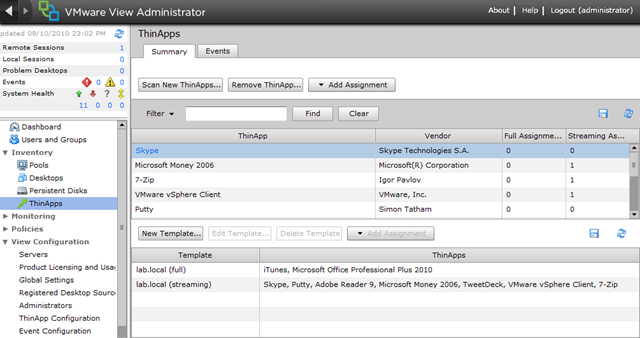

After the repository is created the administrator is able to scan for ThinApp Packages. The packages will be displayed as in the figure below, and will be identified as Full Assignment or Streaming. Full Assignment will make the ThinApp packages to be deployed in full (normal installation) to the virtual desktop; and Streaming Assignment will make ThinApp packages be streamed from the network share at execution time.

VMware View agent is responsible for deploying Full Assignments and present Streaming Assignment to the Guest OS. The picture below also demonstrates the creation of two templates.

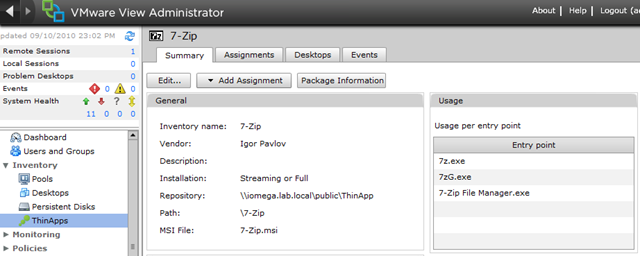

Once a ThinApp package is selected the administrator is able to see important information about assignments and the desktops executing the application. It is also possible to see vendor information, application path and the events associated to the specific application. For Events it is necessary to setup an Event database using Microsoft SQL or Oracle.



It is really very simple and straight forward.

Now, let’s move to the important bits about publishing ThinApp packages using VMware View.

1 – The ThinApp package MUST have been created altogether with the .msi package. If not, VMware View manager will not detect the package when scanning the repository.

2 – For application streaming it is necessary to add the following line to the ThinApp configuration package. (package.ini)


Additionally I would recommend adding:

Set the compression to Fast


Another tip not related to VMware View itself is – if you are plan to have stat full packages where applications will always start with the same setting even if the user change the settings or parameters, add the following to the package.ini file:

;——– General Purpose Parameters ———-


  1. I am a big fan of your blog. I am looking at ways to limit the number of streamed sessions per applications. SPecifically, I have MS Project and MS Visio with 10 licenses. However I have 20 users I want to stream the application to, but only allow to concurrent sessions. XenApp has a feature for max concurrent users, and I cannot find anything in ThinApp for this.



  2. @David Harmon
    Thanks for the comment and support.
    Unfortunately there is no native way to limit the number of sessions on a ThinApp package. VMware’s Horizon project is promising to solve this issue maintaining a database of active users to applications.

    I don’t remember where exactly, but I have seen an alternative solution to limit the number of ThinApp executions.
