The Right Hardware for a 10K VDI solution

I have been involved in many VDI designs over the past years, and recently I have been involved in a design and architecture for a 10,000 user VDI solution. I thought it would be interesting to share here the considerations and decisions that goes behind hardware definition for such a large project.

So, first let’s review the requirements, constraints and assumptions that must be followed during the design.



Requirements:

  • 10,000 VMs powered-on with average CPU of 200MHz
  • 15% CPU overhead for eventual spikes
  • Cisco UCS Blade Servers
  • Windows 7 Enterprise 32bit VMs with 2GB RAM
  • High Availability is a requirement
  • VMware View Linked Clones
  • vSphere 5 must be used

Constraints:

  • Floor space in the datacenter is scarce

Assumptions:

  • Storage array and networking gear are already in place
  • Transparent Page Sharing ratio is 20%
  • 1GB Hypervisor Memory Overhead (ESXi)

Considerations

  • TPS ratio – Because of Windows7 ASLR (Address Space Layout Randomization) the TPS ratio (Transparent Page Sharing) is reduced to about 10-20% (it was about 30-40% with Windows XP).
  • Eight hosts per vSphere Cluster  is the maximum supported with View Composer
  • Cisco UCS unified computing is the platform of choice for this design because it provides a simplified converged architecture, yet allowing for automated and centralized management. However, the methodology demonstrated below is valid for any hardware vendor and model. For more about UCS… refer to UCS and UCSM Basics.



Because of scarce floor space the solution requires high consolidation ratio. That means, many VMs per core, many cores per socket, and many sockets per server.

The maximum number of VMs/core supported by VMware View is 16. The target will be 12 VMs/core as it automatically guarantees one host cluster for failover (N+1). Using 12 VMs/core over 8 hosts is the same thing as using 13.72 VMs/core over 7 hosts and leaving 1 spare host for failover.

Example:

  • 8 hosts x 96 (12 VMs x 8 cores) = 768
  • 7 hosts x 128 (13.72 VMs x 8 cores) = 768

Therefore, when using a host with 8 cores the total number of VMs per host under normal operating  conditions is 96. In a HA event the number of VMs per host will be 110 (109.76). In this design I will not use 8 core/hosts, but the formula is still valid.



Step 1 – Hosted VMs

Cisco UCS B440 M2 High blade server seemed like a good choice (see table below) with 4 sockets and Intel Xeon E7-4800 with up to 10 cores per processor (number of cores from Intel Website). Two options are available with this blade server – 20 cores with 2 sockets, or 40 cores with 4 sockets.



Scenario 1 with 40 cores on Cisco UCS B440 M2 High:

  • Hosts: 21
  • CPU Speed Required: 2.7GHz
  • RAM: 856 GB
  • VM/host Ratio: 480
  • Number of Chassis: 6 (full width blade) *

Scenario 1 with 20 cores on Cisco UCS B440 M2 High:

  • Hosts: 42
  • CPU Speed Required: 2.7GHz
  • RAM: 432 GB
  • VM/host Ratio: 240
  • Number of Chassis: 11 (full width blade) *

*The Cisco UCS 5100 Series Chassis support half-width and full-width blade servers. When populated with half-width blades the chassis fit 8 blades; when populated with full-width blades the chassis fit 4 blades.

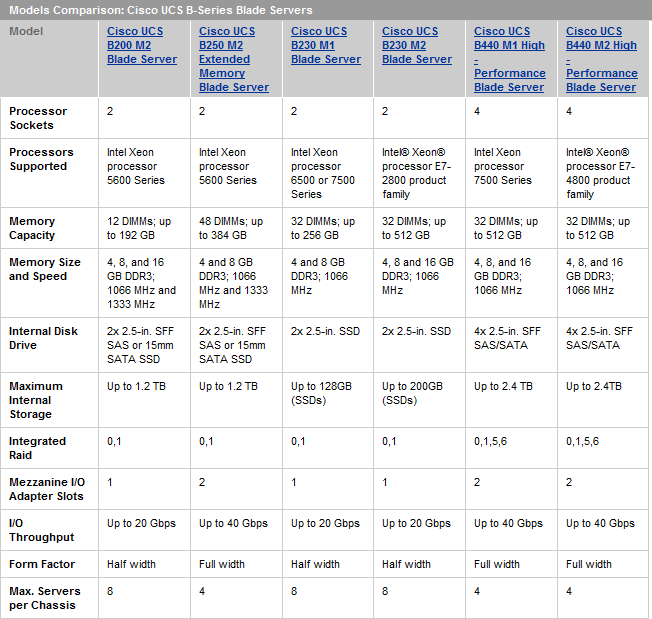

Looking at scenario number 1 we immediately see that Cisco UCS B440 M2 High with maximum of 512GB (see table below) does not support the amount of RAM required. Scenario 2, has no issues with the amount of RAM, however two things do not look right to me:

  1. CPU clock required is very close to 2.8GHz Max. Turbo frequency (refer to Intel Website)
  2. Number blades and Chassis required is too high, requiring 3 racks (max. 4 chassis per rack)


Source: Cisco Website as of 9/16/2011



The second blade I would like to try is the  Cisco UCS B250 M2 Extended Memory Blade server with 2 sockets, up to 384GB RAM and is Half width. The Intel CPU is the 5600 Series and support up to 6 cores. This blade server with 2 sockets and 6 cores would allow 144 VMs per hosts (I’m still trying the 12 VMs/Core). The Intel 5600 Series seems not to be an issue with it’s Max. Frequency at 3.6GHz.



Scenario with 12cores on Cisco UCS B250 M2 Extended Memory:

  • Hosts: 70
  • CPU Speed Required: 2.7GHz
  • RAM: 256 GB
  • VM/host Ratio: 144
  • Number of Chassis:9 (Half width blade)

The number of VM per host allow for a very good consolidation ratio, however two things do not look right to me:

  1. The number of blade server is too high, requiring additional power and cooling.
  2. Number of Chassis required is too high, requiring 3 racks (max. 4 chassis per rack)

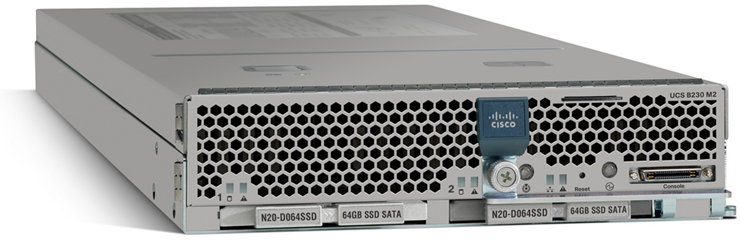

Let’s look at another option yet. The Cisco UCS B230 M2 has only two sockets but is Half-width, requiring less Cisco UCS Chassis. The maximum number of cores supported by the Intel E7-2800 is 10, therefore the blade have 20 Cores available.



Scenario with 20 cores on Cisco UCS B230 M2:

  • Hosts: 42
  • CPU Speed Required: 2.7GHz
  • RAM: 432 GB
  • VM/host Ratio: 240
  • Number of Chassis: 6 (Half width blade)

Looking at scenario above immediately see that Cisco UCS B230 M2 will not have problems supporting the amount of RAM required. Also, because it’s a Half width blade it’s possible to fit 8 blades per Chassis, reducing the amount of Chassis to 6. However, one things does not look right to me:

  1. The E7-2800 CPU has a Max. Frequency is 2.9GHz only with Turbo frequency enabled(refer to Intel Website). It’s not recommended to run Turbo Frequencies constantly during production time. Turbo also requires additional power and cooling.

A option to reduce CPU MHz consumption is to lower the number of VMs/Core. In doing that we also lower the consolidation ratio, therefore requiring more blade servers and chassis. In this specific scenario, when I lower VM/Core ratio from 12 to 10 the number of hosts increase to from 42 to 50, requiring 7 Chassis instead of 6.



I’ll try once again the same Cisco UCS B230 M2 Extended Memory, however reducing the number of VMs/core to 11. Reducing VMs/Core will reduce CPU clock required, RAM and Blades.



Scenario with 20 cores on Cisco UCS B230 M2 Extended Memory:

  • Hosts: 46
  • CPU Speed Required: 2.5GHz
  • RAM: 392GB
  • VM/host Ratio: 220
  • Number of Chassis: 6 (Half width blade)

Looking at the scenario above we can see that the numbers are looking better.

  1. Number of hosts is not too high and the consolidation ratio is at 220 VMs/host. The benefits are the reduced number of chassis required, less power, and less cooling.
  2. The Intel E7-2800 normal Max. frequency is 2.4 GHz, a little bit under the required. However, it will only max out Turbo Frequency at 2.8GHz. In this scenario the solution will not be running with Turbo constantly, but will be above regular max. frequency. Remember that we have added 15% overhead as part of the requirement. (refer to Intel Website)
  3. The maximum RAM supported is 384GB, witch is a little bit under the 392GB required. If the hosts runs out of memory it may have to swap to disk. However, before swapping to disk vSphere will try to reallocate VMs using DRS and also run memory compression.

The Cisco UCS B230 M2 Extended Memory would be my pick in this specific scenario with 10,000 VMs. My selection does not mean this is the right solution for your organization given that hardware definition is totally based on requirements, constraints and assumptions.






Step 2 – Infrastructure

Along with all 10,000 virtual desktops there is need to size hardware to support the software infrastructure supporting the solution. For VMware View those would be Connection Servers, Security Servers, Transfer Servers, vCenter Servers and any additional 3rd party software. For Citrix XenDesktop those may be Web Interfaces, Desktop Delivery Controllers, PVS Servers and XenApp Servers.

The infrastructure yet could include Domain Controllers, License Servers, Data Collectors.

For this design we will use VMware View 5.0:

  • 7 vCenter Servers with 8GB RAM
  • 6 Connection Servers with 10GB RAM (N+1)
  • No Security Servers
  • No Transfer Servers

It is not good practice to host management servers on the same infrastructure and clusters supporting the virtual desktop workload for reliability reasons. You could opt for hosting those infrastructure VMs in a completely different set of servers; perhaps your server virtualization infrastructure.

I have chosen to use two blades of the same model and configuration (Cisco UCS B230 M2 Extended Memory) to allow for replacement for the virtual desktop workload if I need to.

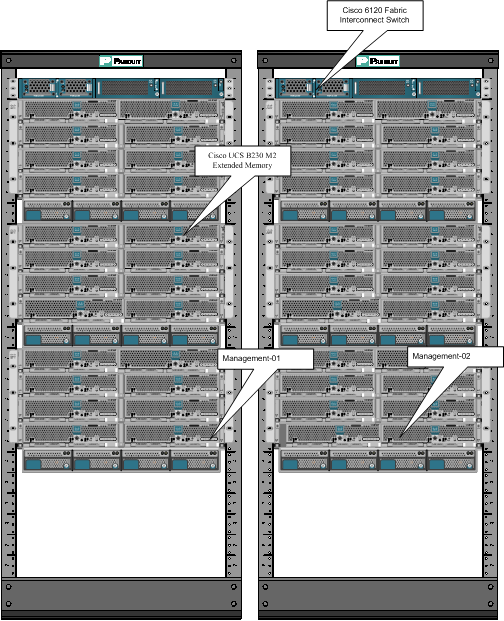

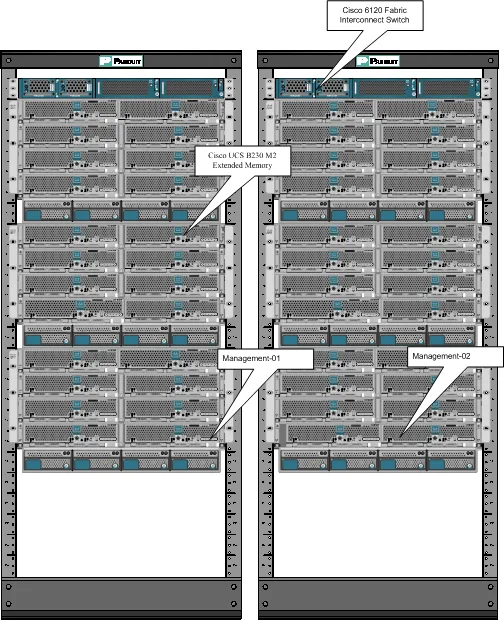

Here is how the solution would look like in my datacenter (nice, tidy and in two racks only) image



There are several factors that create a wide range of software and hardware combinations. As an example, if VM memory is reduced to 1.5GB the amount of host/RAM required is 304 GB. Changing de amount of memory will not change the number of hosts, unless you assign more VMs per core. The consequence of assigning more VMs per core is that you will need more GHz per CPU and you server may not support.

For this blog post I have used my Online VDI Calculator to determine the number hosts, host CPU frequencies and host memory. The calculator is fully optimized to support the latest release of vSphere and VMware View.
