A Brief History of Desktop Storage Architecture

My VMware colleague Tristan Tod (@tristantodd) put together an excellent presentation about VDI and related storage technologies. One of my favorite parts of his presentation deck was the “A Brief History of Desktop Storage Architecture”, wich in my personal opinion is extremely valuable for VDI architects and administrators. I have added some personal comments and links but most of the work was done by Tristan. Well done Tristan!

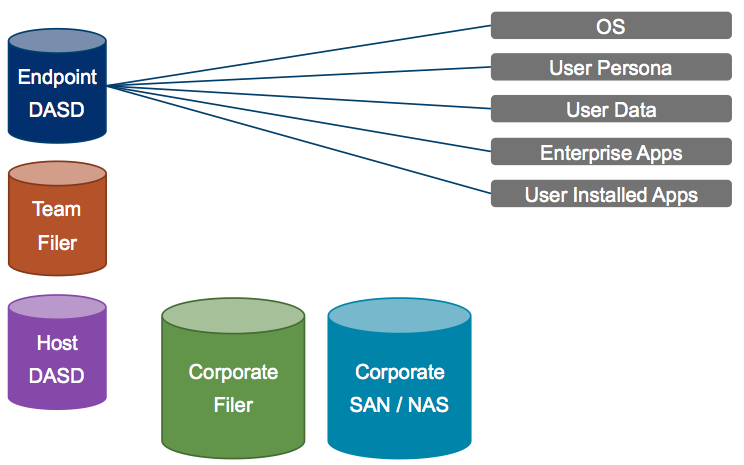

Physical PCs

In the beginning…there were physical desktops and everything was on DASD (Direct access storage device).



Screen Shot 2013-05-19 at 5.27.17 PM

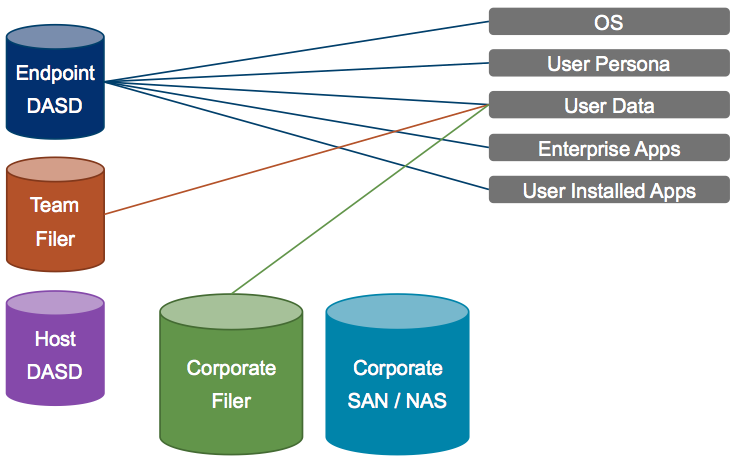

Physical PCs 2.0

Filers at team and corporate level started to arrive and user data began to land on shared storage.



Screen Shot 2013-05-19 at 5.27.39 PM

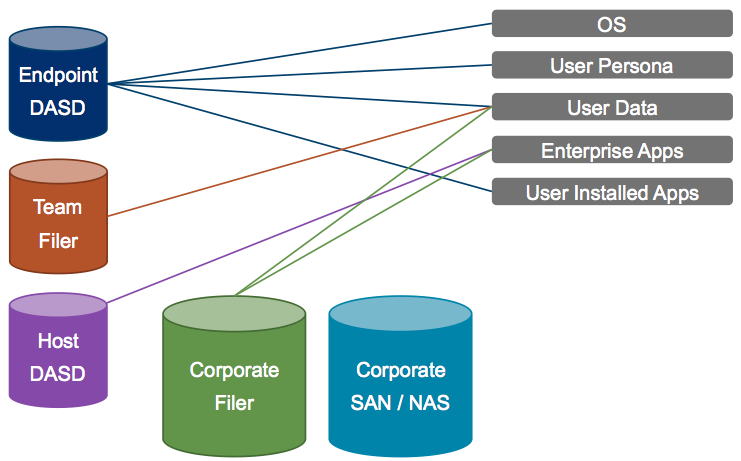

Physical PCs and Terminal Services

With terminal services came further distribution of storage for desktops in that enterprise applications began to land on shared storage and even server storage.



Screen Shot 2013-05-19 at 5.27.51 PM

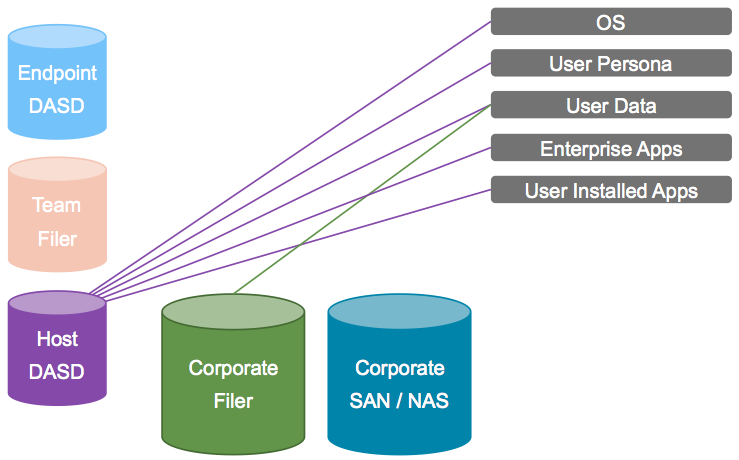

Early VDI for the really unfortunate

Some early adopters of VDI were not provided with SAN access (storage administrators worried about VDI) and started hosting desktops on DASD at vSphere host level.



Screen Shot 2013-05-19 at 5.30.48 PM

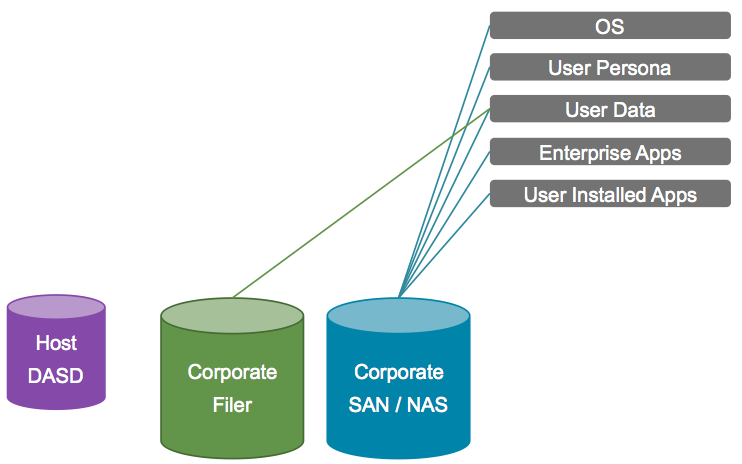

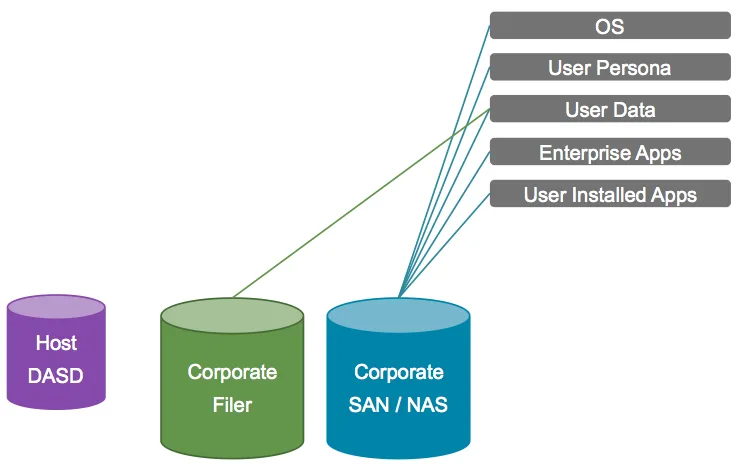

Early VDI for the more fortunate

The more fortunate early adopters were able to host desktops in enterprise SAN/NAS in the same way that many vSphere customer had been hosting server workloads.



Screen Shot 2013-05-19 at 5.31.36 PM

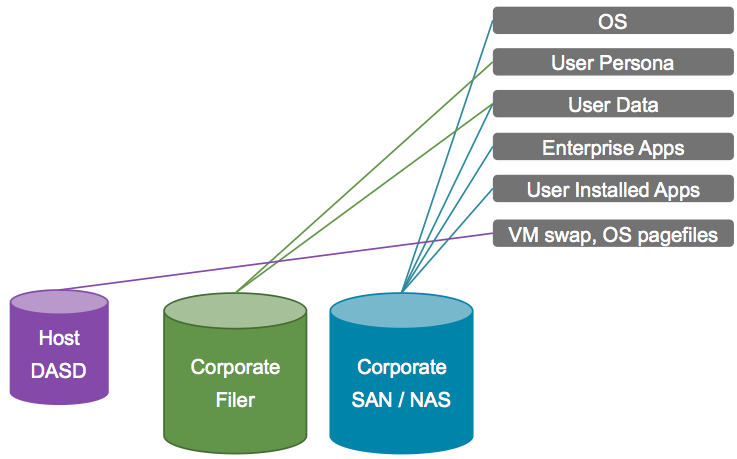

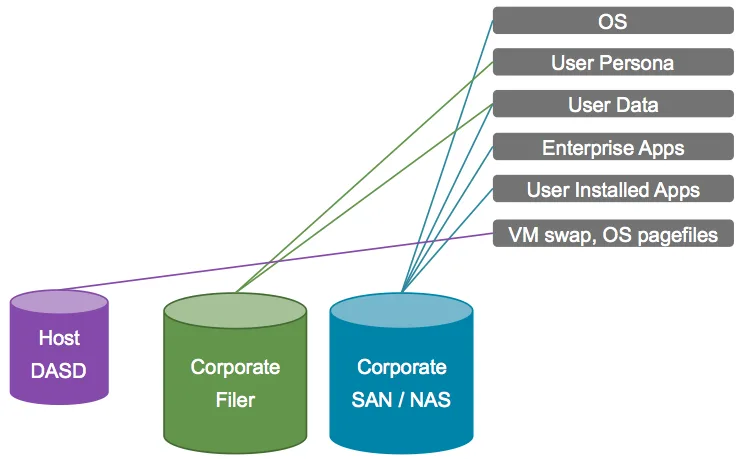

VDI with basic tiered storage

Basic tiered storage involved moving seldom used, temporary, and non-essential desktop VM data off of “expensive” shared storage and onto host DASD. Many administrators continue to do this today. Refer to Save [VDI] Storage using VM Swap File Host Placement.

Screen Shot 2013-05-19 at 5.34.21 PM

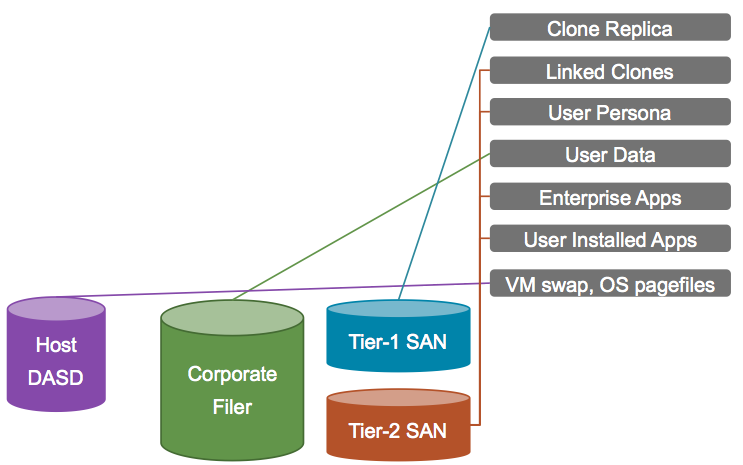

VDI with advanced tiered storage

Advanced tiered-storage arrived in VMware View 4.0 and allowed storage tiering of linked clones to different storage platforms (based on capacity and performance needs). Refer to VMware View 4.5 Linked Cloning Operations Explained (Part 1) and VMware View 4.5 Linked Cloning Operations Explained (Part 2).

Screen Shot 2013-05-19 at 5.34.29 PM

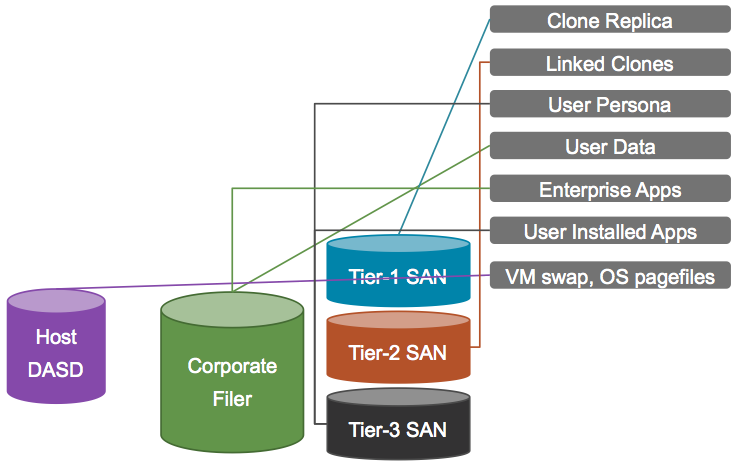

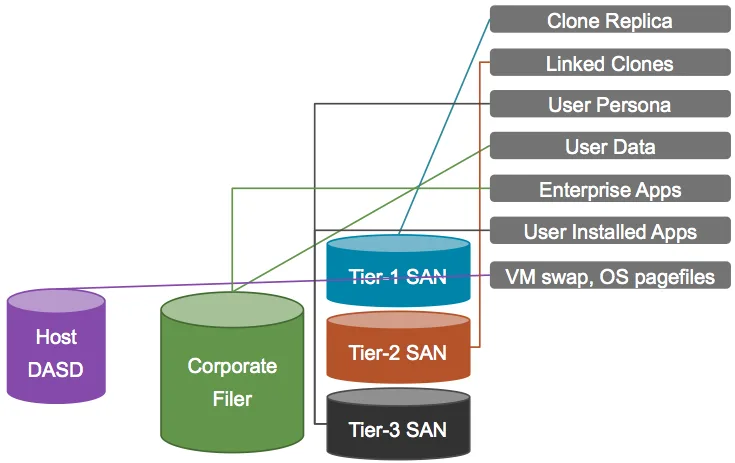

VDI with advanced tiered storage and persona management

With more advanced tiered storage + persona management, further separation of storage was possible.

Screen Shot 2013-05-19 at 5.36.25 PM

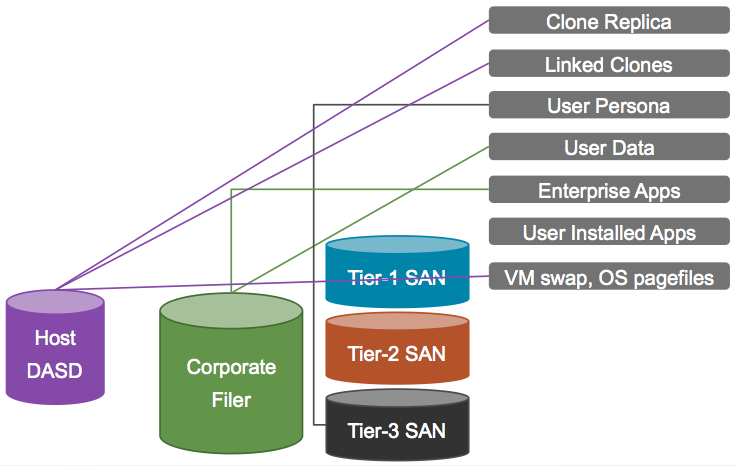

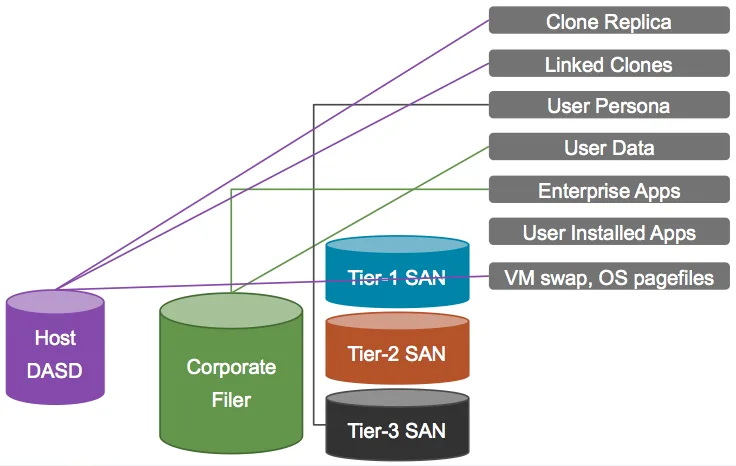

VDI with local SSD or Flash

With the introduction of the stateless reference architectures for VMware View, high performance DASD (SSD or flash) could be used for host linked clones. In this way, shared storage is lightly used for access to user data, persona, and enterprise applications. Refer to Use Flash Drives (SSD) for Linked Clones, not Replicas and Offloading Virtual Desktop IOs with Atlantis ILIO: Deep Dive .

Screen Shot 2013-05-19 at 5.37.06 PM

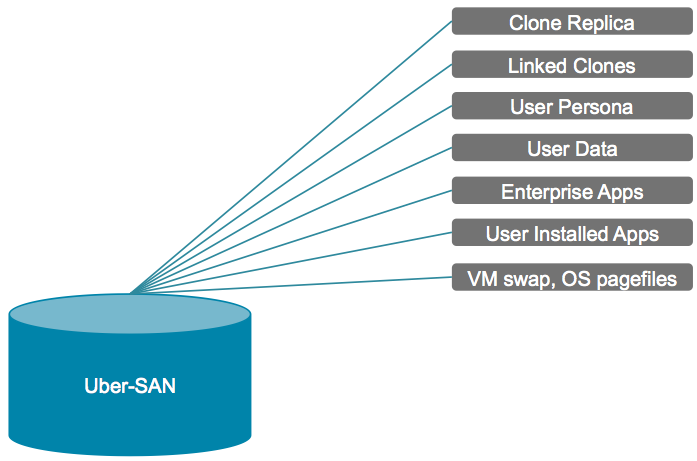

VDI with auto-tier SAN / NAS

Some advanced storage solutions arrived that promised to be a auto-tier solution where all VDI components could land on the same storage platform but be moved to appropriate backend tier based on IO characteristics. Refer to EMC FAST Cache effectiveness with VDI. In this category I would also put a number of different technologies such as the scale-out like Nutanix with Fusion IO cards and Nexenta ZFS with ZIL and L2ARC.

Screen Shot 2013-05-19 at 5.37.56 PM

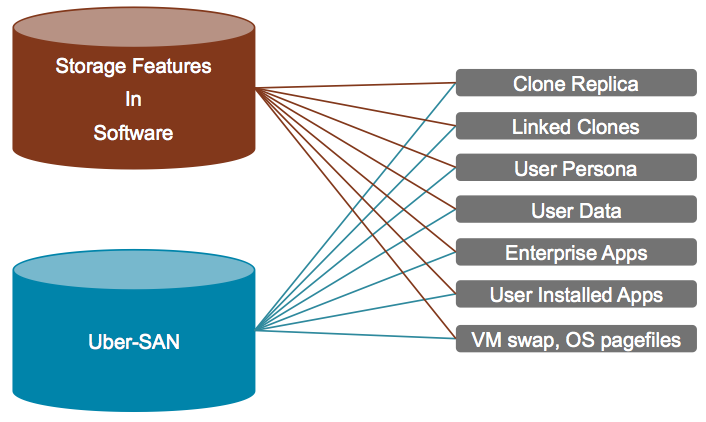

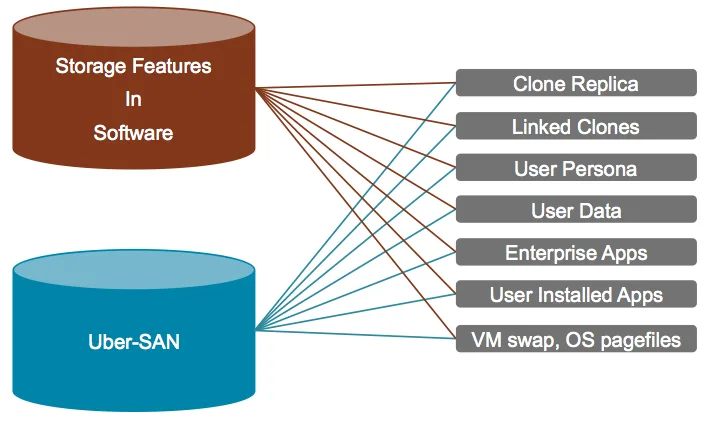

VDI with storage features in Software + advanced physical storage

Finally, advanced automatic tiering in hardware and intelligent storage features in software (such as the View Storage Accelerator) have shown great promise in providing a simplified front-end storage architecture. Refer to Understanding CBRC (Content Based Read Cache).

Screen Shot 2013-05-19 at 5.38.27 PM

We have certainly not covered all possible storage technologies for VDI but this list is amusing and demonstrate how reference architectures and deployment models have changes over the last few years. It’s all about cycles and we keep repeating them as the technology gets better and prices come down.

This article was first published by Andre Leibovici (@andreleibovici) at myvirtualcloud.net.
